Worm Gear DC Motor
| Model | Terminal Voltage (VDC) | Rated Load Torque (N·m) | Rated Load Amps | Rated Load RPM | Gear Ratio | Fig |
|---|---|---|---|---|---|---|

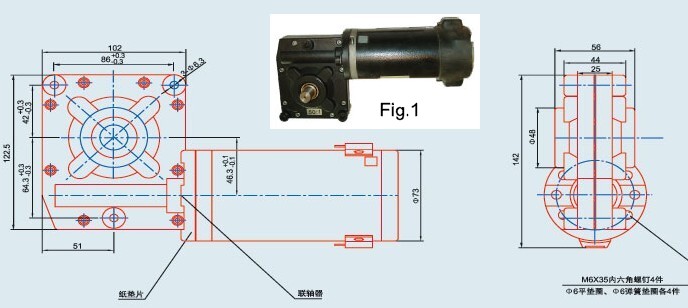

| ZJD7301+MCP4-501 | 24 | 9.1 | 5.3 | 58 | 50:1 | 1 |
| ZJD7302+MCP4-501 | 24 | 8 | 5.1 | 70 | 50:1 | 1 |

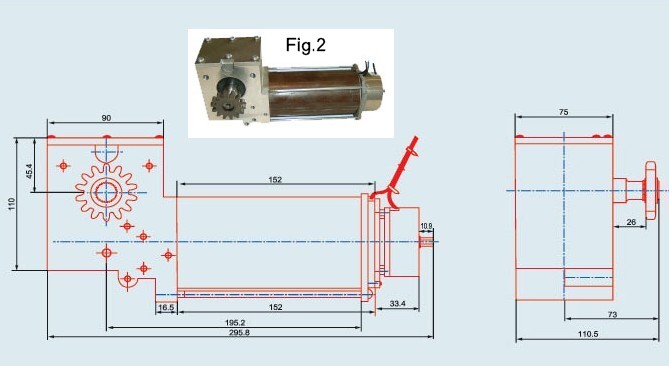

| ZJD7508 | 24 | 40 | 20.8 | 34.5 | 34:1 | 2 |

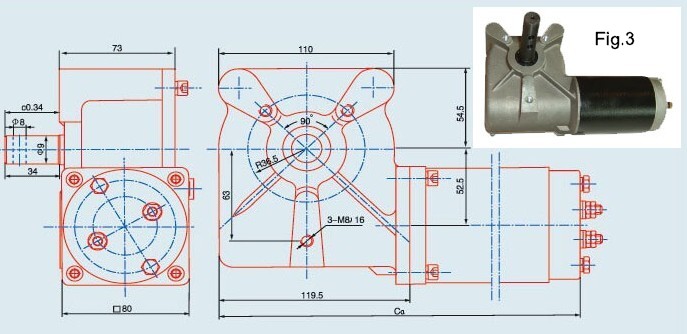

| ZJD8025 | 12 | 21 | 33 | 40 | 90:1 | 3 |

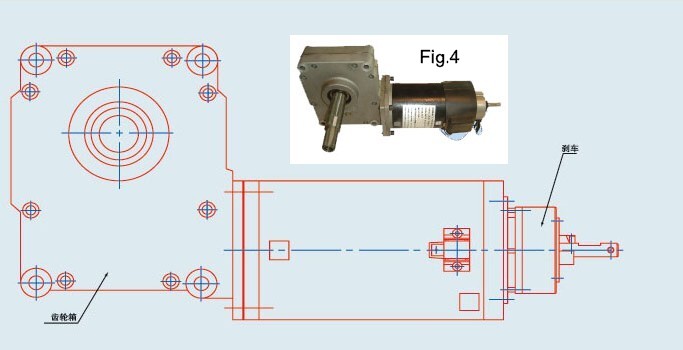

| ZJD90+MCP2/301 | 12 | no-load | 3 | 166 | 30:1 | 4 |
| ZJD90+MCP2/601 | 12 | no-load | 1.7 | 83 | 60:1 | 4 |

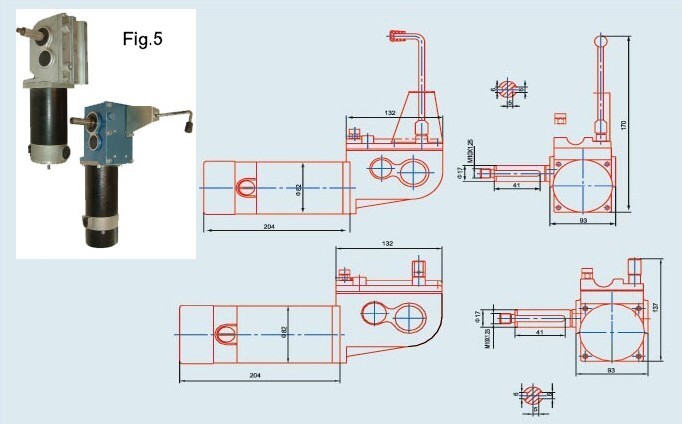

| ZJD110 | 24 | 14.6 | 20 | 141 | 32:1 | 5 |
| ZJD140 | 24 | 14.6 | 18 | 131 | 32:2 | 5 |
| ZJD603 | 24 | 14.6 | 10.7 | 84 | 32:3 | 5 |
