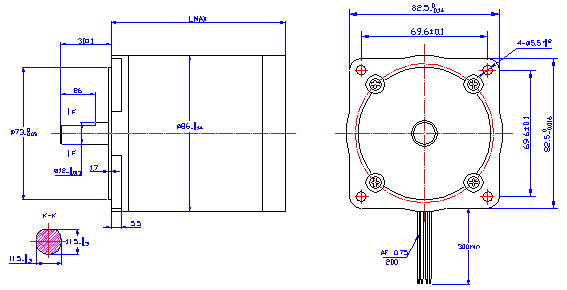

86 BYGH series step motor
General Specifications
- Step Accuracy: ±5%
- Temperature Rise: 80℃ Max.
- Ambient Temperature Range: 20℃~+50℃
- Insulation Resistance: 100MΩ Min. 50V DC
- Dielectric Strength: 500V AC 1 minute
| Model |
Step Angle (°) |
Motor Length (mm) |
Rated Voltage (V) |
Rated Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Holding Torque (g·cm) |
Lead Wire (NO.) |
Rotor Inertia (g·c㎡) |
Detent Torque (g·cm) |
Motor Weight (kg) |

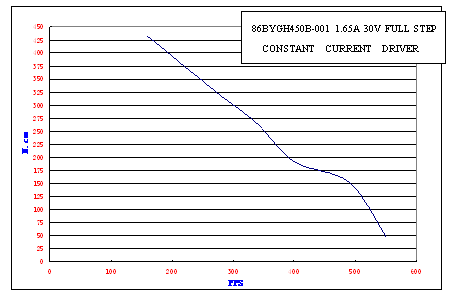

| 86BYGH450B-001 |
1.8 |
97 |
6.27 |
1.65 |
3.8 |
24 |
5.2 |
4 |
2.2 |
2 |
2.9 |

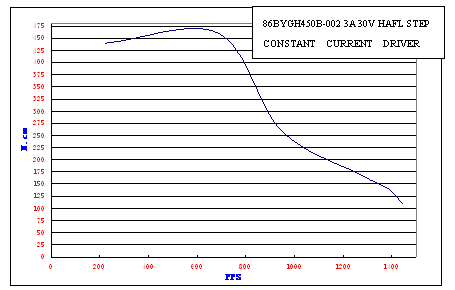

| 86BYGH450B-002 |
1.8 |
97 |
3.9 |
3 |
1.3 |
7.5 |
5.1 |
4 |
2.2 |
2 |
2.9 |

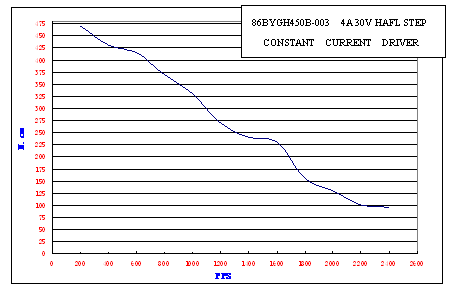

| 86BYGH450B-003 |
1.8 |
97 |
3.2 |
4 |
0.8 |
5.2 |
5.4 |
4 |
2.2 |
2 |
2.9 |
