PM DC Motors

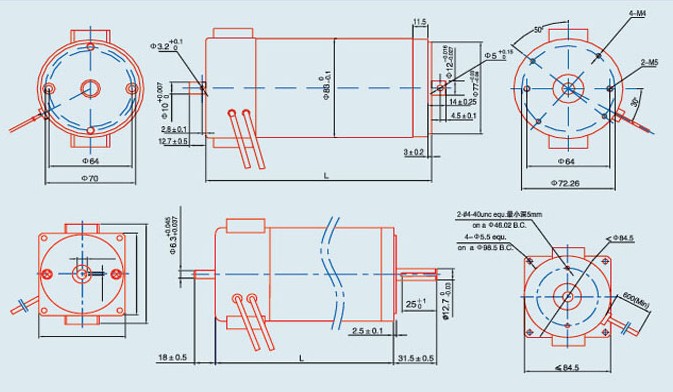

80 ZYT series DC Motor
Main applications: Printers, engraving machines, medical equipment, stage lighting and textile machinery.
| Model | Terminal Voltage (VDC) | No Load Amps | No Load RPM | Rated Load Torque (N·m) | Rated Load Amps | Rated Load RPM | Body Length (mm) |
|---|---|---|---|---|---|---|---|
| 80ZYT001 | 12 | 3.5 | 3600 | 0.4 | 16.5 | 3000 | 146.5 |
| 80ZYT002 | 24 | 1.6 | 3539 | 0.5 | 10.0 | 3373 | 173.8 |
| 80ZYT002-1 | 24 | 2.0 | 3000 | 0.7 | 10.5 | 2700 | 173.8 |
| 80ZYT003 | 24 | 2.0 | 3100 | 0.6 | 11.5 | 2660 | 142.5 |
| 80ZYT005 | 36 | 0.9 | 2800 | 0.5 | 5.0 | 2600 | 178.5 |
| 80ZYT013-1 | 24 | 3.0 | 4200 | 0.7 | 18.0 | 3800 | 168.5 |
| 80ZYT013-2 | 24 | 3.0 | 4500 | 0.7 | 20.0 | 4050 | 168.5 |
| 80ZYT014 | 12 | 1.5 | 2500 | 0.8 | 20.5 | 1900 | 142.5 |
| 80ZYT039 | 90 | 0.8 | 4600 | 1.2 | 7.5 | 4100 | 173.8 |
