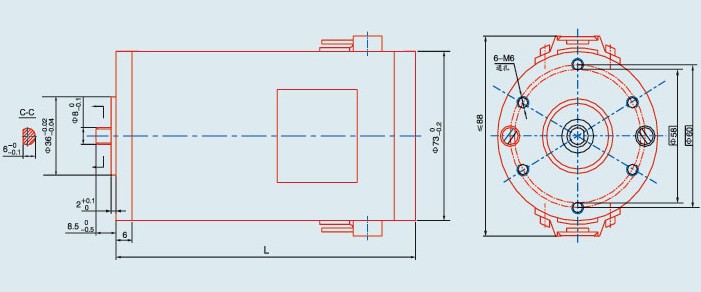

73 ZYT series DC Motor
| Model | Terminal Voltage (VDC) | No Load Amps | No Load RPM | Rated Load Torque (N·m) | Rated Load Amps | Rated Load RPM | Body Length (mm) |
|---|---|---|---|---|---|---|---|
| 73ZYT001 | 12 | 3.0 | 4400 | 0.3 | 15.0 | 3700 | 145 |
| 73ZYT001-1 | 24 | 0.6 | 3430 | 0.25 | 4.0 | 3100 | 145 |
| 73ZYT001-2 | 24 | 0.7 | 3850 | 0.23 | 5.0 | 3550 | 145 |
| 73ZYT002 | 12 | 2.5 | 4000 | 0.4 | 16.5 | 3200 | 155 |
| 73ZYT003 | 12 | 2.0 | 3600 | 0.5 | 18.0 | 3000 | 165 |
