Step Motors

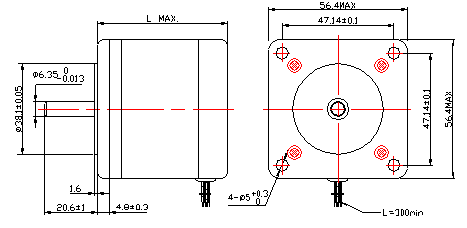

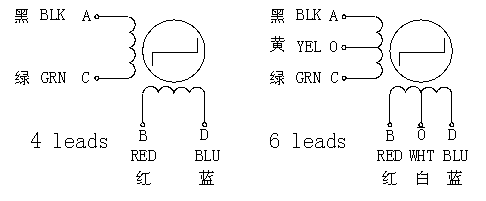

57 BYG series step motor
General Specifications
- Step Accuracy: ±5%
- Temperature Rise: 80℃ Max.
- Ambient Temperature Range: 20℃~+50℃
- Insulation Resistance: 100MΩ Min. 50V DC
- Dielectric Strength: 500V AC 1 minute
| Model | Step Angle (°) | Motor Length (mm) | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (g·cm) | Lead Wire (NO.) | Rotor Inertia (g·c㎡) | Detent Torque (g·cm) | Motor Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|

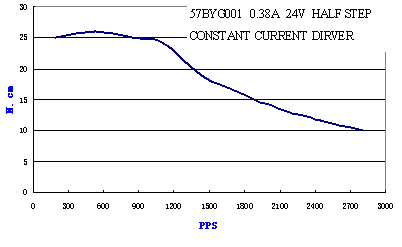

| 57BYG001 | 1.8 | 41 | 12.2 | 0.38 | 32 | 30 | 3 | 6 | 57 | 0.18 | 0.54 |

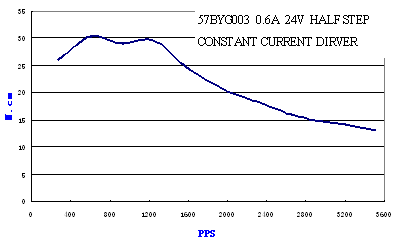

| 57BYG003 | 1.8 | 41 | 12 | 0.6 | 20 | 18 | 3.3 | 6 | 57 | 0.18 | 0.54 |

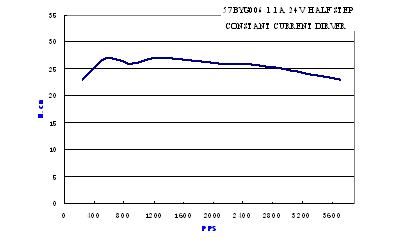

| 57BYG006 | 1.8 | 41 | 3.96 | 1.1 | 3.6 | 3.5 | 3 | 8 | 57 | 0.18 | 0.54 |

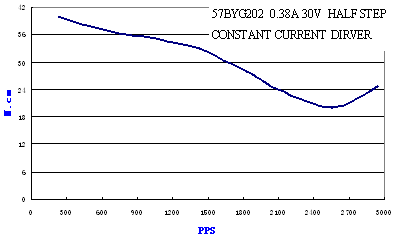

| 57BYG202 | 1.8 | 51 | 12.2 | 0.38 | 32 | 30 | 3.5 | 6 | 110 | 0.18 | 0.54 |

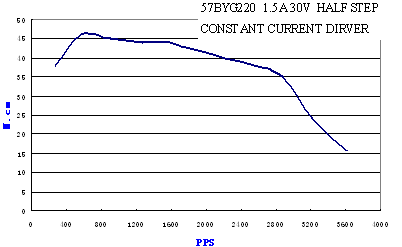

| 57BYG220 | 1.8 | 51 | 3.3 | 1.5 | 2.2 | 8.5 | 5.8 | 4 | 110 | 0.35 | 0.6 |

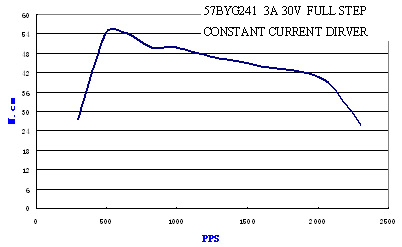

| 57BYG241 | 1.8 | 51 | 1.68 | 3 | 0.56 | 1.8 | 6 | 4 | 110 | 0.35 | 0.6 |

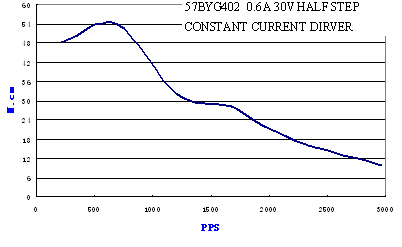

| 57BYG402 | 1.8 | 57 | 12 | 0.6 | 20 | 27 | 5.8 | 6 | 135 | 0.35 | 0.6 |

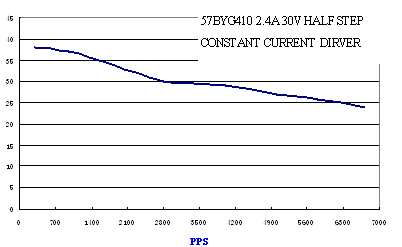

| 57BYG410 | 1.8 | 57 | 2.4 | 2.4 | 1 | 2 | 6 | 6 | 135 | 0.42 | 0.65 |

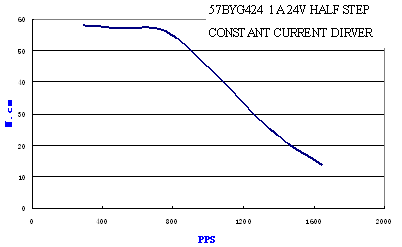

| 57BYG424 | 1.8 | 57 | 3.2 | 1 | 3.2 | 5.5 | 4.5 | 4 | 135 | 0.42 | 0.65 |

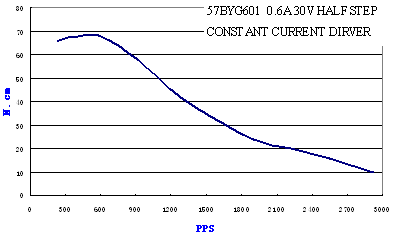

| 57BYG601 | 1.8 | 76 | 12 | 0.6 | 20 | 25 | 9 | 6 | 200 | 0.42 | 0.65 |

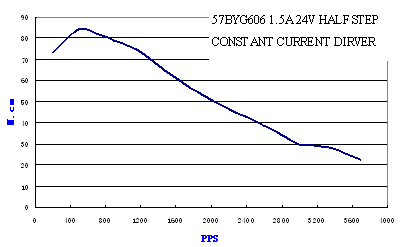

| 57BYG606 | 1.8 | 76 | 5.4 | 1.5 | 3.6 | 6.2 | 8.8 | 6 | 200 | 0.72 | 0.95 |

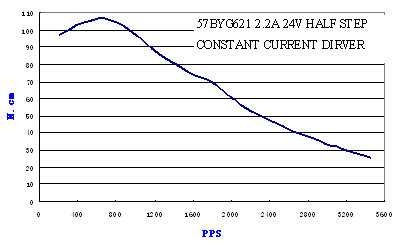

| 57BYG621 | 1.8 | 76 | 3.96 | 2.2 | 1.8 | 6 | 12.5 | 4 | 200 | 0.72 | 0.95 |

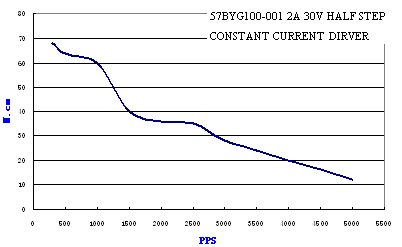

| 57BYG100-001 | 1.8 | 100 | 2.1 | 2 | 1.05 | 4.5 | 12 | 4 | 300 | 0.95 | 1.25 |
