42 BYGH series step motor
General Specifications
- Step Accuracy: ±5%
- Temperature Rise: 80℃ Max.
- Ambient Temperature Range: 20℃~+50℃
- Insulation Resistance: 100MΩ Min. 50V DC
- Dielectric Strength: 500V AC 1 minute
| Model |
Step Angle (°) |
Motor Length (mm) |
Rated Voltage (V) |
Rated Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Holding Torque (g·cm) |
Lead Wire (NO.) |
Rotor Inertia (g·c㎡) |
Detent Torque (g·cm) |
Motor Weight (kg) |
| 42BYGH201 |
1.8 |
34 |
12 |
0.16 |
75 |
42 |
950 |
5 |
34 |
200 |
0.2 |
| 42BYGH202 |
1.8 |
34 |
12 |
0.3 |
40 |
22 |
1250 |
6 |
34 |
200 |
0.2 |
| 42BYGH610 |
1.8 |
40 |
6.5 |
1.2 |
6 |
13 |
3000 |
4 |
54 |
220 |
0.24 |
| 42BYGH613 |
1.8 |
40 |
2.4 |
1.7 |
1.5 |
2.5 |
3500 |
4 |
54 |
220 |
0.24 |
| 42BYGH616 |
1.8 |
40 |
4.1 |
0.5 |
8 |
15 |
2600 |
4 |
54 |
220 |
0.24 |
| 42BYGH718 |
1.8 |
44 |
8.9 |
0.5 |
18 |
23 |
2900 |
6 |
50 |
250 |
0.3 |
| 42BYGH721 |
1.8 |
44 |
10 |
0.25 |
40 |
36 |
2000 |
6 |
50 |
250 |
0.3 |
| 42BYGH801 |
1.8 |
48 |
12 |
0.4 |
30 |
28 |
3800 |
6 |
68 |
280 |
0.34 |
| 42BYGH803 |
1.8 |
48 |
5.6 |
0.8 |
7 |
4 |
2600 |
6 |
68 |
280 |
0.34 |

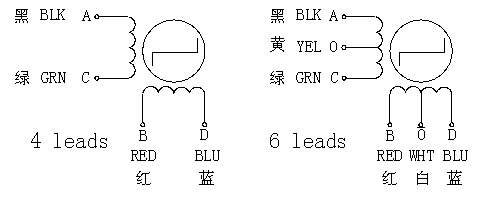

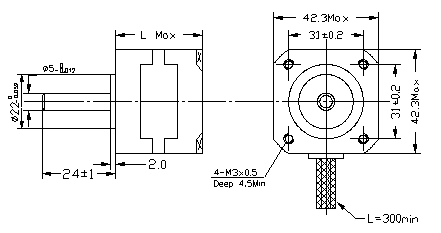

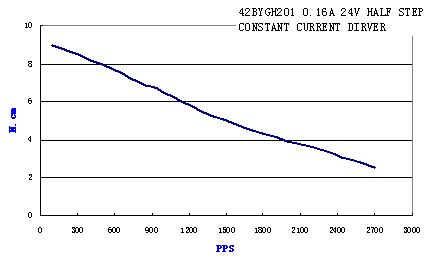

Chart 1

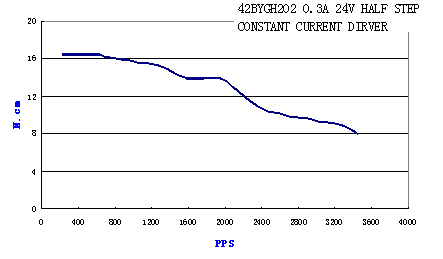

Chart 2

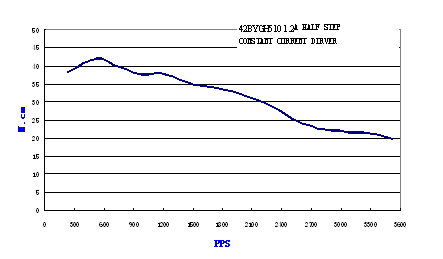

Chart 3

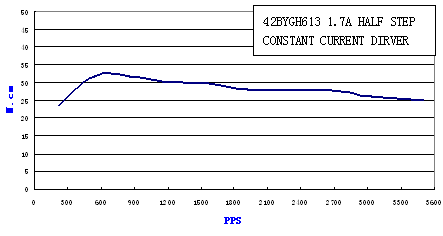

Chart 4
Chart 5

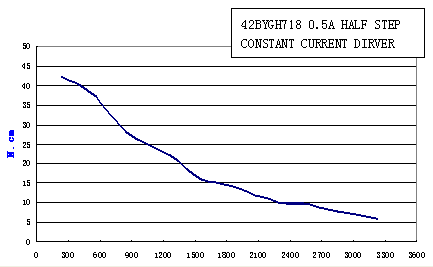

Chart 6

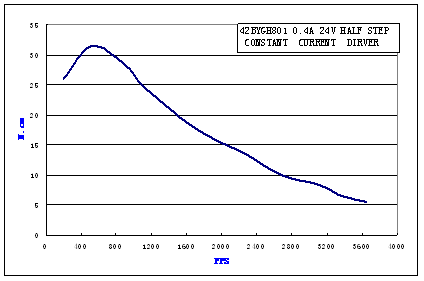

Chart 7

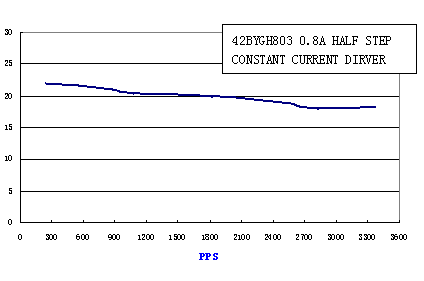

Chart 8
