PM Step Motors
42 BY series PM step motor
Main applications: Printers, engraving machines, medical equipment, stage lighting and textile machinery.

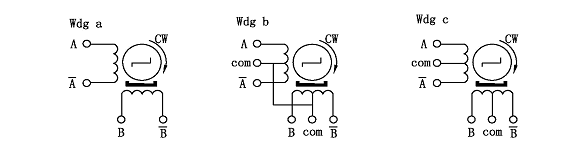

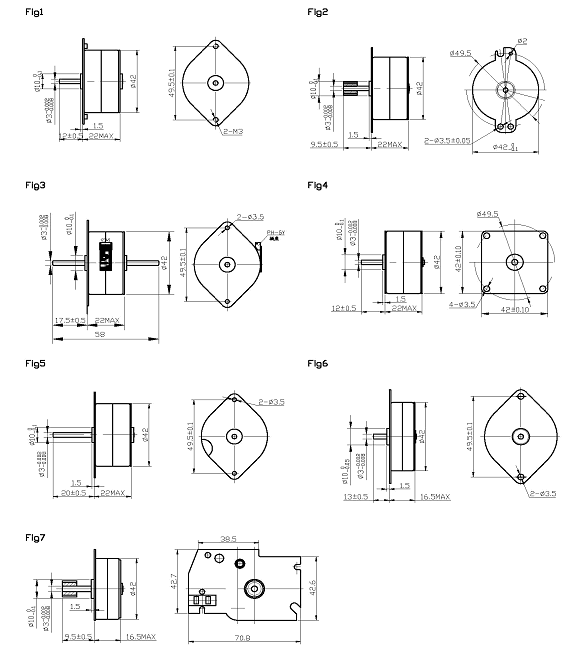

| Model | Step Angle | Phase | Volt (V) | Curr (A) | Res (Ω) | Ind (mH) | Hold Torque | Detent Torque | Rotor Inertia | Lends | Wdg | Fig |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42BY48L01 | 7.5 | 4 | 12 | 0.18 | 70 | - | 500 | 125 | 9.6 | UL1007 26AWG | c | 1 |
| 42BY48L09 | 7.5 | 4 | 9 | 0.58 | 15.5 | - | 800 | 125 | 7.5 | UL1007 26AWG | c | 2 |
| 42BY48L013 | 7.5 | 4 | 12 | 0.2 | 60 | - | 450 | 125 | 7.5 | UL1007 26AWG | b | 3 |
| 42BY48H02 | 7.5 | 4 | 12 | 0.25 | 48 | - | 550 | 125 | 9.6 | UL1007 26AWG | c | 4 |
| 42BY48H07B | 7.5 | 4 | 12 | 0.142 | 85 | - | 750 | 200 | 9.6 | UL1061 28AWG | b | 5 |
| 42BY48S01 | 7.5 | 4 | 12 | 0.3 | 40 | - | 550 | 100 | 9.6 | UL1007 26AWG | b | 6 |
| 42BY48S11 | 7.5 | 4 | 12 | 0.21 | 57 | - | 550 | 90 | 9.6 | UL1007 26AWG | b | 7 |
| 20BY20L014 | 18 | 4 | 12 | 0.4 | 30 | 55 | 7.5 | 0.6 | UL1571 28AWG | c | 3 | |
| 20BY20Y-02 | 18 | 2 | 5 | 0.33 | 15 | 50 | 10 | 0.6 | UL1095 28AWG | a | 4 | |
| 20BYUAG2 | 18 | 4 | 12 | 0.07 | 170 | 35 | 7.5 | 0.6 | UL2651 28AWG | b | 5 |
