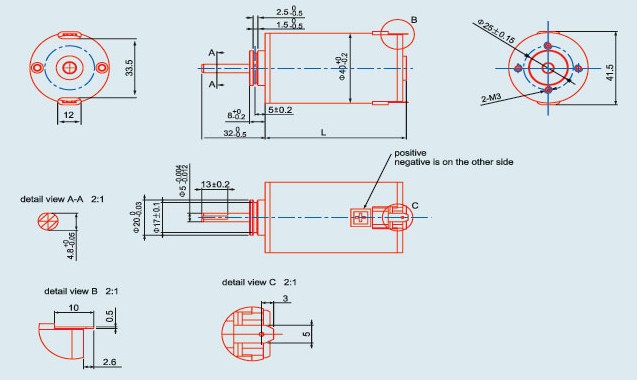

40 ZYT series DC Motor
| Model | Terminal Voltage (VDC) | No Load Amps | No Load RPM | Rated Load Torque (N·m) | Rated Load Amps | Rated Load RPM | Body Length (mm) |
|---|---|---|---|---|---|---|---|
| 40ZYT016 | 24 | 0.1 | 1800 | 0.045 | 0.6 | 1150 | 71 |
| 40ZYT017 | 24 | 0.3 | 4200 | 0.045 | 1.5 | 3400 | 71 |
| 40ZYT026 | 24 | 0.2 | 5250 | 0.08 | 2.6 | 4150 | 71 |
| 40ZYT027-1 | 24 | 0.1 | 1800 | 0.045 | 0.6 | 1200 | 71 |
| 40ZYT029 | 24 | 0.8 | 6000 | 0.03 | 1.7 | 5500 | 71 |
