35 BYG series step motor
General Specifications
- Step Accuracy: ±5%
- Temperature Rise: 80℃ Max.
- Ambient Temperature Range: 20℃~+50℃
- Insulation Resistance: 100MΩ Min. 50V DC
- Dielectric Strength: 500V AC 1 minute

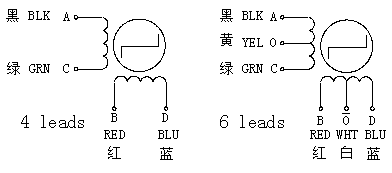

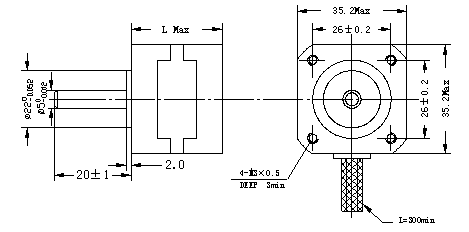

| Model |
Step Angle (°) |
Motor Length (mm) |
Rated Voltage (V) |
Rated Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Holding Torque (g·cm) |
Lead Wire (NO.) |
Rotor Inertia (g·c㎡) |
Detent Torque (g·cm) |
Motor Weight (kg) |
| 35BYG101 |
1.8 |
20 |
11.25 |
0.45 |
25 |
9 |
500 |
6 |
8 |
50 |
0.1 |
| 35BYG103 |
1.8 |
20 |
6.57 |
0.73 |
9 |
4 |
600 |
4 |
8 |
50 |
0.1 |
| 35BYG104 |
1.8 |
20 |
10.8 |
0.4 |
27 |
17 |
650 |
4 |
8 |
50 |
0.1 |
| 35BYG203 |
1.8 |
26 |
2.4 |
1.5 |
1.6 |
1.4 |
900 |
4 |
10 |
60 |
0.13 |
| 35BYG204 |
1.8 |
26 |
6.84 |
0.76 |
9 |
4.8 |
800 |
6 |
10 |
60 |
0.13 |
| 35BYG205 |
1.8 |
26 |
12 |
0.25 |
48 |
17 |
380 |
6 |
10 |
60 |
0.13 |
| 35BYG207 |
1.8 |
26 |
3.2 |
0.75 |
4.3 |
4 |
700 |
4 |
10 |
60 |
0.13 |
| 35BYG302 |
1.8 |
28 |
10.4 |
0.4 |
26 |
10 |
1000 |
6 |
11 |
80 |
0.14 |
| 35BYG303 |
1.8 |
28 |
7 |
0.54 |
13 |
9.5 |
800 |
4 |
11 |
80 |
0.14 |
| 35BYG304 |
1.8 |
28 |
3.5 |
1 |
3.5 |
3.5 |
1250 |
4 |
11 |
80 |
0.14 |
| 35BYG401 |
1.8 |
34 |
11 |
0.5 |
22 |
12 |
1000 |
6 |
13 |
95 |
0.17 |

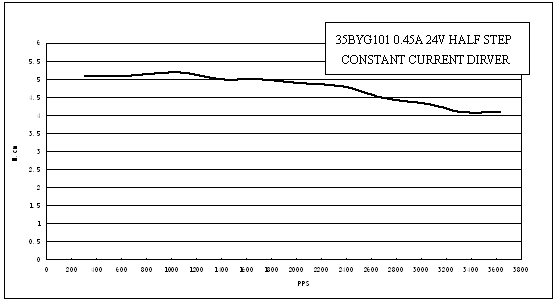

Chart 1

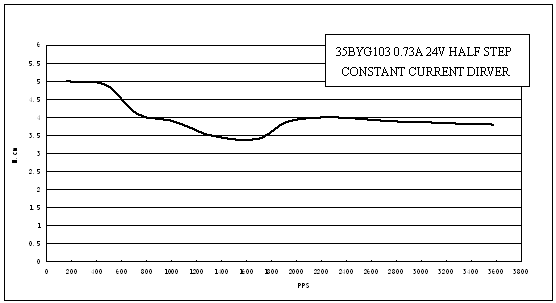

Chart 2

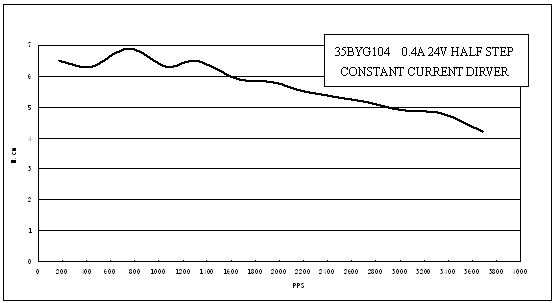

Chart 3

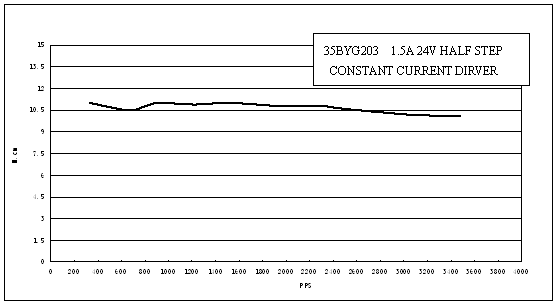

Chart 4

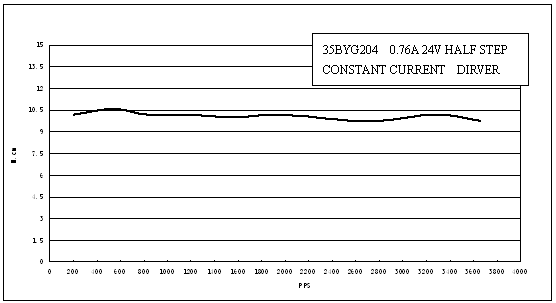

Chart 5

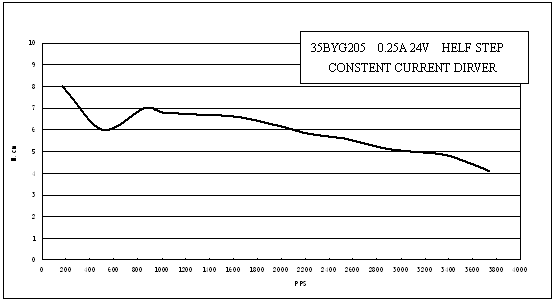

Chart 6

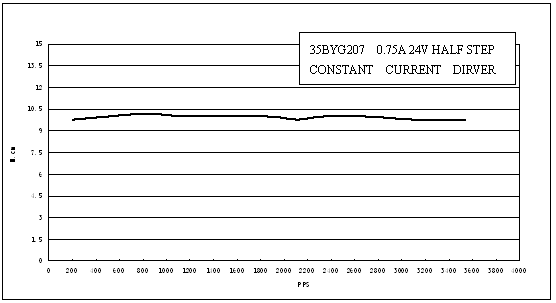

Chart 7

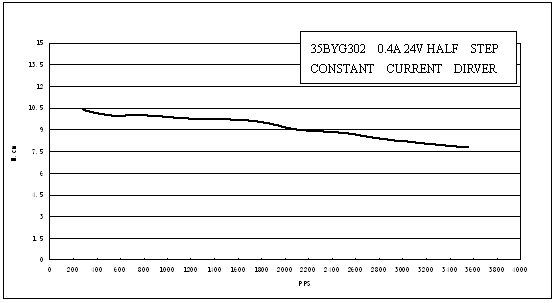

Chart 8

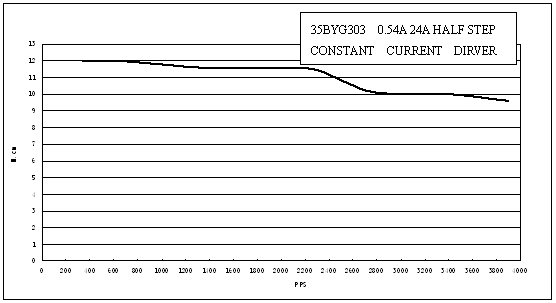

Chart 9

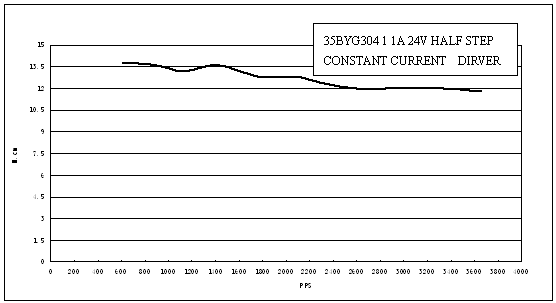

Chart 10

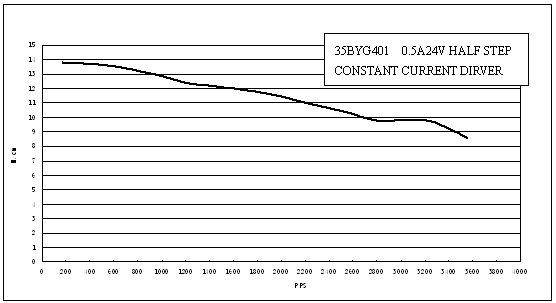

Chart 11
