25 BY series PM step motor
Main applications: Printers, engraving machines, medical equipment, stage lighting and textile machinery.

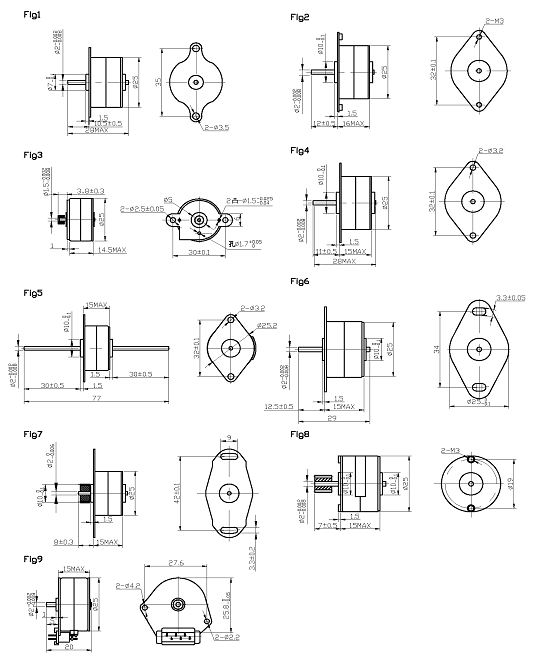

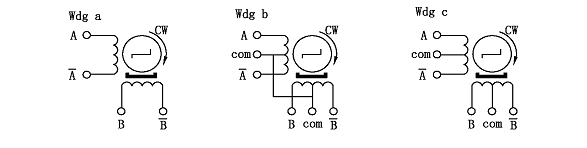

| Model | Step Angle | Phase | Voltage (V) | Current (A) | Resist (Ω) | Inductance (mH) | Holding Torque (g.cm) | Detent Torque (g.cm) | Rotor Inertia (g.cm²) | Lends | Wdg | Fig |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25BY24L01 | 15 | 4 | 9 | 0.45 | 20 | - | 150 | 75 | 1.0 | UL1061 28AWG | c | 1 |
| 25BY24L02 | 15 | 4 | 12 | 0.4 | 30 | - | 150 | 75 | 1.0 | UL1061 28AWG | c | 2 |
| 25BY2416 | 15 | 2 | 24 | 0.066 | 360 | - | 80 | 25 | 0.6 | UL1007 26AWG | a | 3 |
| 25BY48L01 | 7.5 | 4 | 5 | 0.5 | 10 | - | 110 | 45 | 1.0 | UL1061 28AWG | c | 4 |
| 25BY48L029 | 7.5 | 4 | 24 | 0.4 | 60 | - | 200 | 50 | 1.0 | UL1061 28AWG | c | 5 |
| 25BY4803B | 7.5 | 4 | 12 | 0.25 | 50 | - | 160 | 35 | 1.0 | UL1061 28AWG | c | 6 |
| 25BY4809 | 7.5 | 4 | 20 | 0.43 | 50 | - | 155 | 45 | 1.0 | UL1095 28AWG | c | 7 |
| 25BY48Y-02 | 7.5 | 2 | 5 | 0.5 | 10 | - | 150 | 40 | 1.0 | UL1061 28AWG | a | 8 |
| EDM | 7.5 | 4 | 12 | 0.08 | 150 | 36 | 85 | 30 | 1.0 | - | c | 9 |
