20 BY series PM step motor

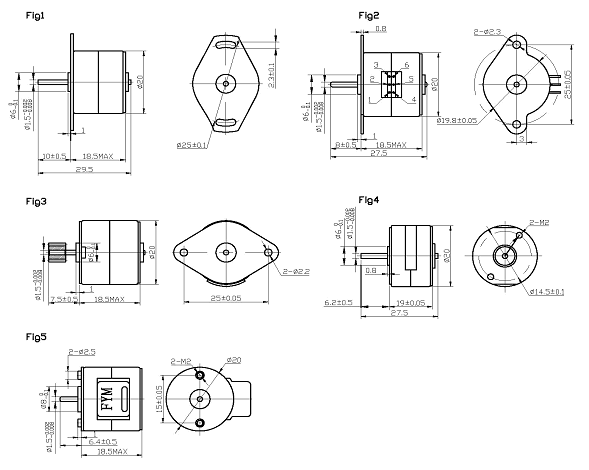

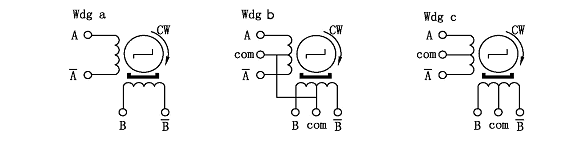

| Model | Step Angle (Deg.) | No. of Phase | Voltage (V) | Current (A) | Resistance (Ω) | Holding Torque (g.cm) | Detent Torque (g.cm) | Rotor Inertia (g.c㎡) | Lends | Wdg | Fig |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20BY20L01 | 18 | 2 | 5 | 0.5 | 10 | 60 | 20 | 0.6 | UL1061 28AWG | a | 1 |
| 20BY20L02 | 18 | 4 | 5 | 0.4 | 13 | 40 | 20 | 0.6 | - | b | 2 |
| 20BY20L014 | 18 | 4 | 12 | 0.4 | 30 | 55 | 7.5 | 0.6 | UL1571 28AWG | c | 3 |
| 20BY20Y-02 | 18 | 2 | 5 | 0.33 | 15 | 50 | 10 | 0.6 | UL1095 28AWG | a | 4 |
| 20BYUAG2 | 18 | 4 | 12 | 0.07 | 170 | 35 | 7.5 | 0.6 | UL2651 28AWG | b | 5 |
