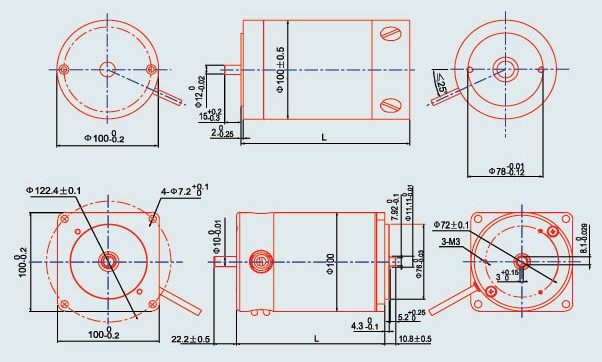

100 ZYT series DC Motor
| Model | Terminal Voltage (VDC) | No Load Amps | No Load RPM | Rated Load Torque (N·m) | Rated Load Amps | Rated Load RPM | Body Length (mm) |
|---|---|---|---|---|---|---|---|
| 100ZYT001-1 | 24 | 2.3 | 3921 | 0.8 | 15.6 | 3454 | 165 |
| 100ZYT001-3 | 24 | 3.5 | 4660 | 0.8 | 20.3 | 4148 | 165 |
| 100ZYT001-27 | 24 | 1.2 | 1600 | 0.8 | 7.5 | 1450 | 165 |
| 100ZYT003-17 | 24 | 1.5 | 2350 | 0.8 | 10.5 | 2250 | 165 |
| 100ZYT007 | 12 | 3 | 1900 | 1.2 | 24.5 | 1500 | 200 |
| 100ZYT017 | 24 | 2.6 | 3700 | 1.5 | 24.0 | 3170 | 145 |
