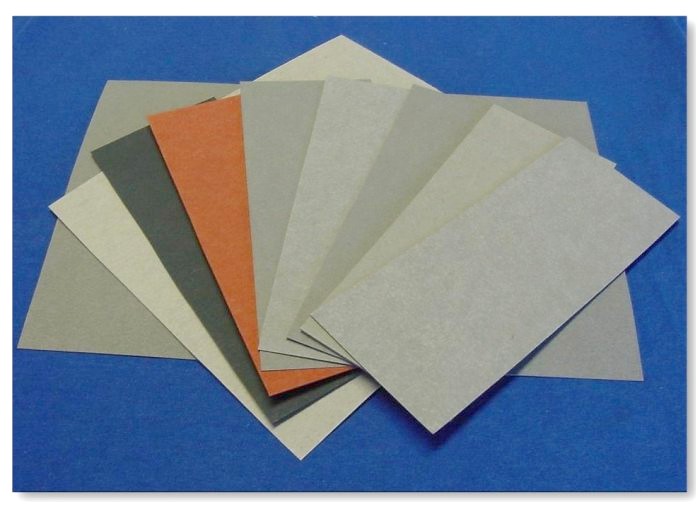

Vulcanized fiber is a laminated plastic material made from cellulose layers. These sheets and tubes offer excellent electrical insulation, mechanical strength, and machinability.

Its hardness and strength are analogous to aluminum, but with a half weight of aluminum in specific gravity only. It has very good mechanic processing property. No delamination or splitting during the process of cutting, drilling, milling and stamping. It has good oil resistance, incombustibility, arc extinction and insulation properties. It’s an ideal material for aviation, electric power and transmission line, textile, electric, railway and other related industries.

No.	Property		Unit	Standard
1	Density		g/cm3	1.15
2	Tensile strength	Lengthwise	kg/cm3	600
		Crosswise		350
3	Breakdown potential strength		kV/mm	4.0
4	Water absorbance		%	65
5	Zinc chloride content			0.15
6	Ash			1.5
7	Moisture			6 - 10

No.	Property	Unit	Standard
1	Density	g/cm3	1.35
2	Axial cross section tensile strength	kg/cm3	700
3	Potential resistance vertical to wall	kV	10
4	Axial potential resistance	kV	30
5	Water absorbance	%	45
6	Zinc chloride content		0.07
7	Ash		1.2
8	Moisture		6 - 10
