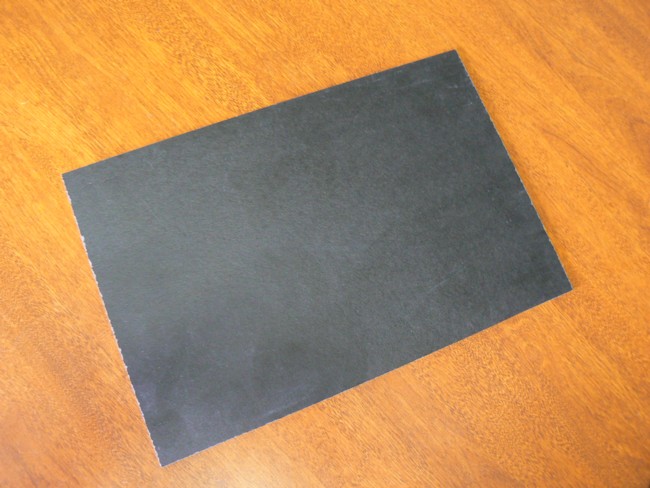

Paper Phenolic Laminates

A low-cost laminate with good electrical and mechanical properties, widely used for switchboards, panel boards, insulating washers and intricate punched parts.

Thickness: 0.20mm and up

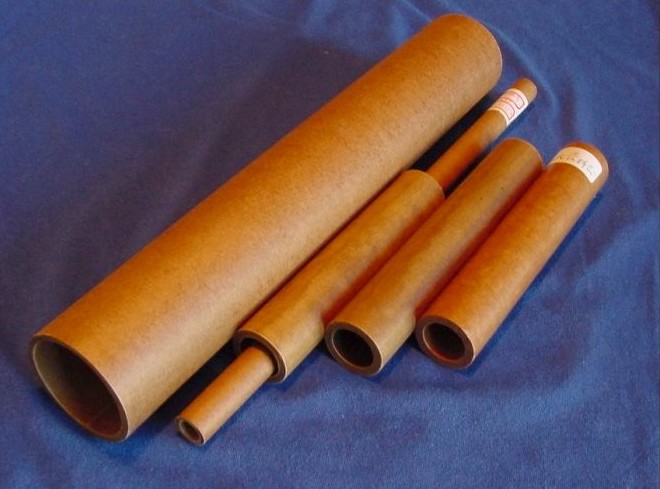

Rolled/molded tube: In length of 960mm, 1000mm and 1180mm.

Item		1	2	3	4	5
DIN 7735		HGW 2061	HGW 2061.5	HGW 2061.6	HGW 2062.8	HGW 2063
ISO R 1642		PF-CP1	PF-CP2	PF-CP3	PF-CP4	PF-CP4
GB BS 5102/2572		P1	-	P2/12B	P3	P4,4
USA NEMA L1		X,XP	-	XX	XXP	XXXP
F NF		P,PO	Pa	PP,PPO	-	PPP
CH VSM		S-PF-CP1	S-PF-CP2	S-PF-CP3	S-PF-CP4	S-PF-CP4
Resin type		Phenolic	Phenolic	Phenolic	Phenolic	Phenolic
DIN 53479	g/cm³	≈1.35	≈1.35	≈1.35	≈1.35	≈1.35
DIN 53452	MPa	150	130	130	80	80
DIN 53453	kJ/m²	20	20	15	8	7
DIN 53453	kJ/m²	15	15	10	5	-
DIN 53453	kJ/m²	5	4	4	2.5	2.5
DIN 53455	MPa	120	100	100	70	70
DIN 53454	MPa	150	150	100	120	100
DIN 53463	N	2000	2000	2000	2000	2000
DIN 53457	MPa	9x10³	9x10³	7x10³	7x10³	7x10³
DIN 53482	Ω	-	-	5x10⁷	10¹⁰	10¹⁰
DIN 53481	kV	15	40	25	25	20
DIN 53481	kV	15	40	30	30	25
DIN 53483	max.	-	0.05	0.8	0.8	-
DIN 53483	max.	-	-	-	-	0.05
DIN 53483	-	5	5	5	5	5
DIN 53480	KC	100	100	100	100	100
DIN 53489	max.	-	-	-	-	AN1.4
DIN 52612	W/mk	0.2	0.2	0.2	0.2	0.2
VDE 0304/2	1/K	2-4x10^-5	2-4x10^-5	2-4x10^-5	2-4x10^-5	2-4x10^-5
VDE 0304/2	°C	120	120	120	120	120
-	MPa	75	65	65	40	40
DIN 53495	mg	600	300	200	120	60
VDE	-	L1	L3	L1	L1	L1
UL94	Stufe	-	-	-	-	-
