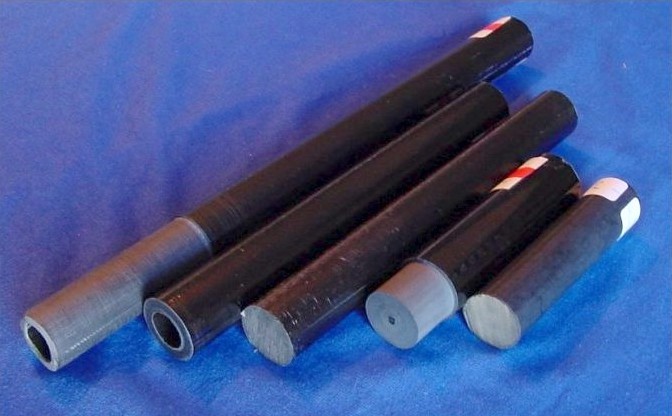

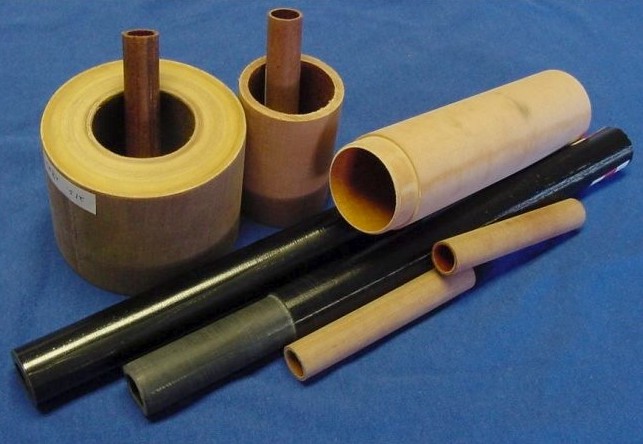

Cotton Phenolic Laminates, Rolled/Molded Rods & Tubes
Cotton phenolic laminates are high-quality industrial grade materials made from cotton fabric impregnated with phenolic resin. These laminates offer excellent mechanical strength, electrical insulation properties, and durability.

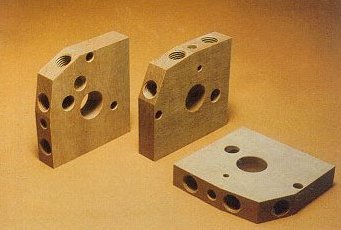

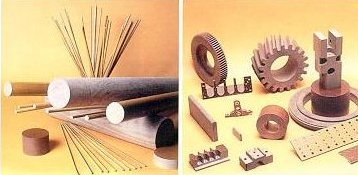

It has more mechanical strength than paper based materials and have finer surface with better machinability. These materials are used for long lasting gears, pinion, bearing, bushing and many structural applications with the advantages of quieter and more economical than metal parts in various industries.
| Item | 1 | 2 | 3 | 4 | 5 | |
|---|---|---|---|---|---|---|
| DIN 7735 | HGW 2081 | HGW 2082 | HGW 2082.5 | HGW 2083 | HGW 2083.5 | |
| ISO R 1642 | - | PF CC1 | PF CC2 | PF CC3 | - | |
| GB BS 5102/2572 | - | F3 | - | - | - | |
| USA NEMA L1 | C | C | CE | L | - | |
| F NF | - | C | - | - | - | |
| CH VSM | - | S-PF-CC1 | - | S-PF-CC3 | - | |
| DIN 53479 | g/cm3 | ≈1.35 | ≈1.35 | ≈1.35 | ≈1.35 | ≈1.35 |
| DIN 53452 | MPa | 100 | 130 | 115 | 150 | 130 |
| DIN 53453 | kJ/m2 | 18 | 30 | 20 | 35 | 30 |
| DIN 53453 | kJ/m2 | 15 | 15 | 20 | 15 | 30 |
| 10 | 10 | 15 | 12 | 12 | ||
| DIN 53455 | MPa | 50 | 80 | 60 | 100 | 80 |
| DIN 53454 | MPa | 170 | 170 | 150 | 170 | 150 |
| DIN 53463 | N | 3000 | 2500 | 2500 | 2500 | 2500 |
| DIN 53457 | MPa | 0.7x105 | 0.7x105 | 0.7x105 | 0.7x105 | 0.7x105 |
| DIN 53482 | Ω | 108 | 108 | 5x108 | 108 | 5x108 |
| DIN 53481 | kV | - | - | - | - | - |
| DIN 53481 | kV | 5 | 5 | 5 | 5 | 5 |
| DIN 53483 | max. | - | - | 0.3 | 0.3 | 0.3 |
| - | - | - | - | - | ||
| DIN 53483 | - | 5 | 5 | 5 | 5 | 5 |
| DIN 53480 | KC | 100 | 100 | 100 | 100 | 100 |
| DIN 53489 | max. | - | - | - | - | - |
| DIN 52612 | W/mk | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| VDE 0304/2 | 1/K | 2-4x10-5 | 2-4x10-5 | 2-4x10-5 | 2-4x10-5 | 2-4x10-5 |
| VDE 0304/2 | °C | 120 | 120 | 120 | 120 | 120 |
| - | MPa | 65 | 65 | 65 | 65 | 65 |
| DIN 53495 | mg | 120 | 120 | 120 | 120 | 120 |
| VDE | - | L1 | L1 | L1 | L1 | L1 |
| UL94 | Stufe | - | - | - | - | - |
| Requirement | ASTM Test Method / Other | Condition | Unit | Thickness (inch) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.015 | 0.031 | 0.062 | 0.094 | 0.125 | 0.188 | 0.250 | 0.500 | 0.750 | 1.000 | 1.001+ | ||||
| Minimum Breakdown Voltage | ASTM D229 | A | kV | -- | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 30.0 |
| D-24/23 | kV | -- | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | ||
| Maximum Permittivity @ 1 MHz | ASTM D229 | A | — | -- | 5.80 | 5.80 | 5.80 | 5.80 | 5.80 | 5.80 | 5.80 | 5.80 | 5.80 | 5.80 |
| D-24/23 | — | -- | 6.00 | 6.00 | 6.00 | 6.00 | 6.00 | 6.00 | 6.00 | 6.00 | 6.00 | 6.00 | ||
| Maximum Dissipation Factor @ 1 MHz | ASTM D229 | A | — | -- | 0.055 | 0.055 | 0.055 | 0.055 | 0.055 | 0.055 | 0.055 | 0.055 | 0.055 | 0.055 |
| D-24/23 | — | -- | -- | -- | 0.070 | 0.070 | 0.070 | 0.070 | 0.070 | 0.070 | 0.070 | 0.070 | ||
| Min. Izod Impact Strength | ASTM D229 | E-48/50 | ft-lb/in (notch) | -- | -- | -- | -- | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
| -- | -- | -- | -- | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | ||||
| Min. Flexural Strength | ASTM D229 | A | ksi | -- | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 15.0 | 15.0 | 14.5 | 14.5 |
| -- | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 | 13.5 | 13.0 | 13.5 | 13.0 | ||||
| Minimum Bonding Strength | ASTM D229 | A | lbs | -- | -- | -- | -- | -- | -- | -- | 1600 | 1600 | 1600 | 1600 |
| D-48/50 | lbs | -- | -- | -- | -- | -- | -- | -- | 1500 | 1500 | 1500 | 1500 | ||
| Maximum Water Absorption | ASTM D229 | D-24/23 | % | 5.80 | 4.00 | 1.95 | 1.55 | 1.30 | 1.00 | 0.95 | 0.70 | 0.60 | 0.55 | 0.55 |
| Flammability | UL 94 | A | Class | -- | HB | HB | HB | HB | HB | HB | HB | HB | HB | HB |
