General Specifications

Shanks for PFU-E, PRU-E and PBU-E exchangeable milling heads, in solid carbide, brazed carbide and alloy steel.

  • TE: Solid tungsten carbide holder

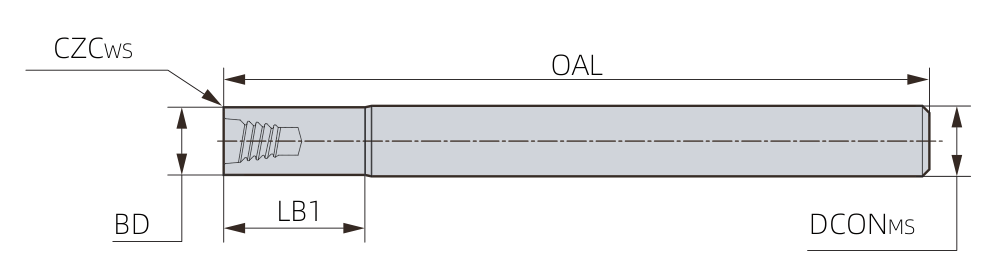

  • WE: Brazed (welded) tungsten carbide holder

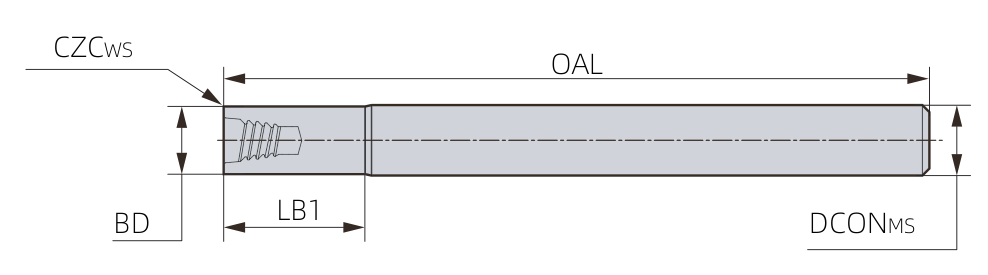

  • SE: Alloy steel holder
  • Connection: Taper thread lock, E10–E20
  • Shank: Plain round as standard; side-lock or tapered shanks to order
Model Connection CZCws Head Length H (mm) Shank Overall Length OAL (mm)
TE10H020A70 E10 20 Plain round 70
TE10H050A110 E10 50 Plain round 110
TE12H030A90 E12 30 Plain round 90
TE12H075A130 E12 75 Plain round 130
TE16H040A100 E16 40 Plain round 100
TE16H080A150 E16 80 Plain round 150
TE20H050A120 E20 50 Plain round 120
TE20H075A170 E20 75 Plain round 170
  • Full shank dimensions on request.
