Epoxy Fibre Glass FR4/G10 | Homa Industrial

Epoxy Fibre Glass FR4/G10 Sheets, Rods & Tubes

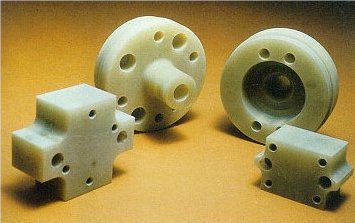

It has high mechanical strength, good electrical properties, and excellent moisture resistance. These properties prevail at elevated temperatures. Flame retardant grades are available. They are used as structural members, slot insulation, wedges and panels in various industries.

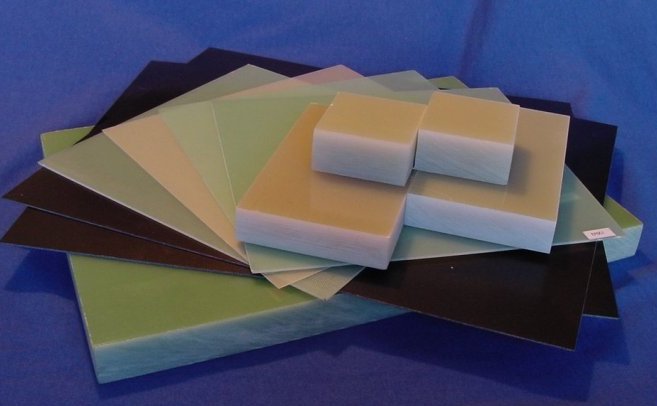

Sheet size: 36” x 48”, 42” x 48”, 40” x 48”;48 x 96"
Thickness range: 0.127mm and up, special thickness to be discussed.
Thickness tolerance: Meet or exceed NEMA.
Rolled / molded tubes and rods: In length of 960mm, 1000mm, 1180mm
Diameters from 6mm – 200mm (special diameters can be discussed)

Item	Unit	1	2
DIN 7735	-	HGW 2372	HGW2372.1
ISO R 1642		EP-GC1	EP-GC2
GB BS 5102/2572		-	-
USA NEMA LI		G10	FR4
F NF		-	-
CH VSM		S-EG-C1	S-EG-C2
Resin type		Epoxy	Epoxy
Glass		Fiber Glass	Fiber Glass
DIN 53479	g/cm³	≈1.80	≈1.80
DIN 53452	MPa	350	350
DIN 53453	kJ/m²	100	100
DIN 53453	kJ/m²	50	50
DIN 53455	MPa	220	220
DIN 53454		200	200
DIN 53463		3000	3000
DIN 53457		20×10⁵	18×10⁵
DIN 53482	Ω	10¹²	10¹²
DIN 53481	kV	40	40
DIN 53481	kV	40	40
DIN 53483	max.	0.05	0.05
DIN 53483	max.	0.025	0.035
DIN 53480	KC	180	200
DIN 53489	max.	AN1.4	AN1.4
DIN 52612	W/m·K	0.3	0.3
VDE 0304/2	1/K	1–2×10⁻⁶	1–2×10⁻⁶
VDE 0304/2	°C	130	130
-	MPa	70	70
DIN 53495	mg	28	28
VDE	-	L1	L3
UL94	Stufe	-	V0

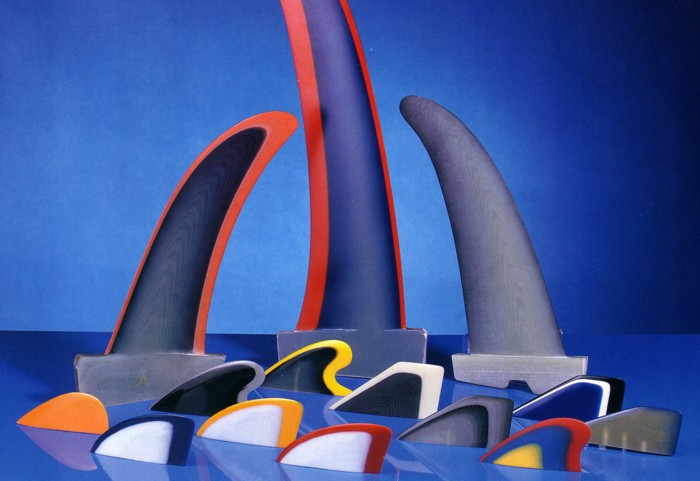

Properties & Applications: Sports appliances such as fins for surfboards and structural supports used as engineering parts in other industries.

Model: EPGC – X (X = Color)

Max. size: 40" x 48"

For color designs and thickness tolerances: Per customers' specific request.

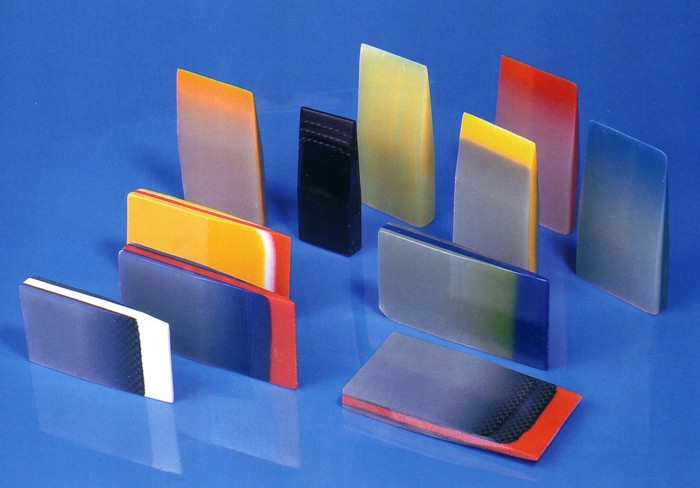

Features: Solid color and multi-colored epoxy fibre glass sheets (Sandwich) and natural FR4 fibre glass.

Color Code Table

The "X" in the model represents the color code shown in the table below. For colors not shown here, please send your desired color card and samples.

Color	Black	Brown	Red	Orange	Yellow	Green	Blue	Purple	Ash	White	Carbon	Natural
X	0	1	2	3	4	5	6	7	8	9	C	Z
